Verification Report · drawio v31.4.5

NOT PUBLISHED drawio-v31.4.5-20260916-001 verified_at 2026-09-16T06:12:30Z

Immutable inputs

App version	`v31.4.5` ← release tag `v31.4.5` · source `f3abfe0f082c`
Image (exact tag)	`jgraph/drawio:31.4.5`
Image digest (linux/amd64)	`sha256:b326c192ee2cc7ed9fb5b9039b9a78a4ff778b22f2a6d22f9ed741ed3e7c211c`
Index digest	`sha256:43104f0dd9e90f8d1e1eeb67944a45c9dc839373b9dda2fd0014f0b45f093570`
Pulled as	`jgraph/drawio:31.4.5@sha256:b326c192ee2cc7ed9fb5b9039b9a78a4ff778b22f2a6d22f9ed741ed3e7c211c` via `registry-1.docker.io`
Platform contract	`ami-025d99823a4caad37` · us-east-1/x86_64 · source=public (plat-us-east-1-x86_64-20260909-001)
Config revisions	app `21211b738c42` · compose `3ef85b16af7d`
Release type	`initial` — rule1: no published versions recorded for this app

Publish gate

Check	Field	Result
Compose started	`checks.compose_started`	Passed
Container healthy	`checks.container_healthy`	Passed
Health check passed	`checks.health_check_passed`	Passed
Application tests	`checks.tests_passed`	Passed
Screenshots captured	`checks.screenshots_generated`	Passed
Screenshots published	`checks.screenshots_uploaded`	Failed
Report published	`checks.report_uploaded`	Failed
Manifest published	`checks.verification_manifest_uploaded`	Failed
Platform contract valid	`checks.required_platform_contract_valid`	Passed

Evidence

Health probe	HTTP 200 — ready
Version assertion	True actual `31.4.5` — 匹配（exact）：kind=exec_command 取到 '31.4.5'，期望 '31.4.5'
Tests	pytest exit=0 . [100%] ==================================== PASSES ==================================== =========================== short test summary info ============================ PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets 1 passed in 0.21s
Container state	`running`
Duration	21.2s（2026-09-16T06:12:09Z → 2026-09-16T06:12:30Z）

Screenshots

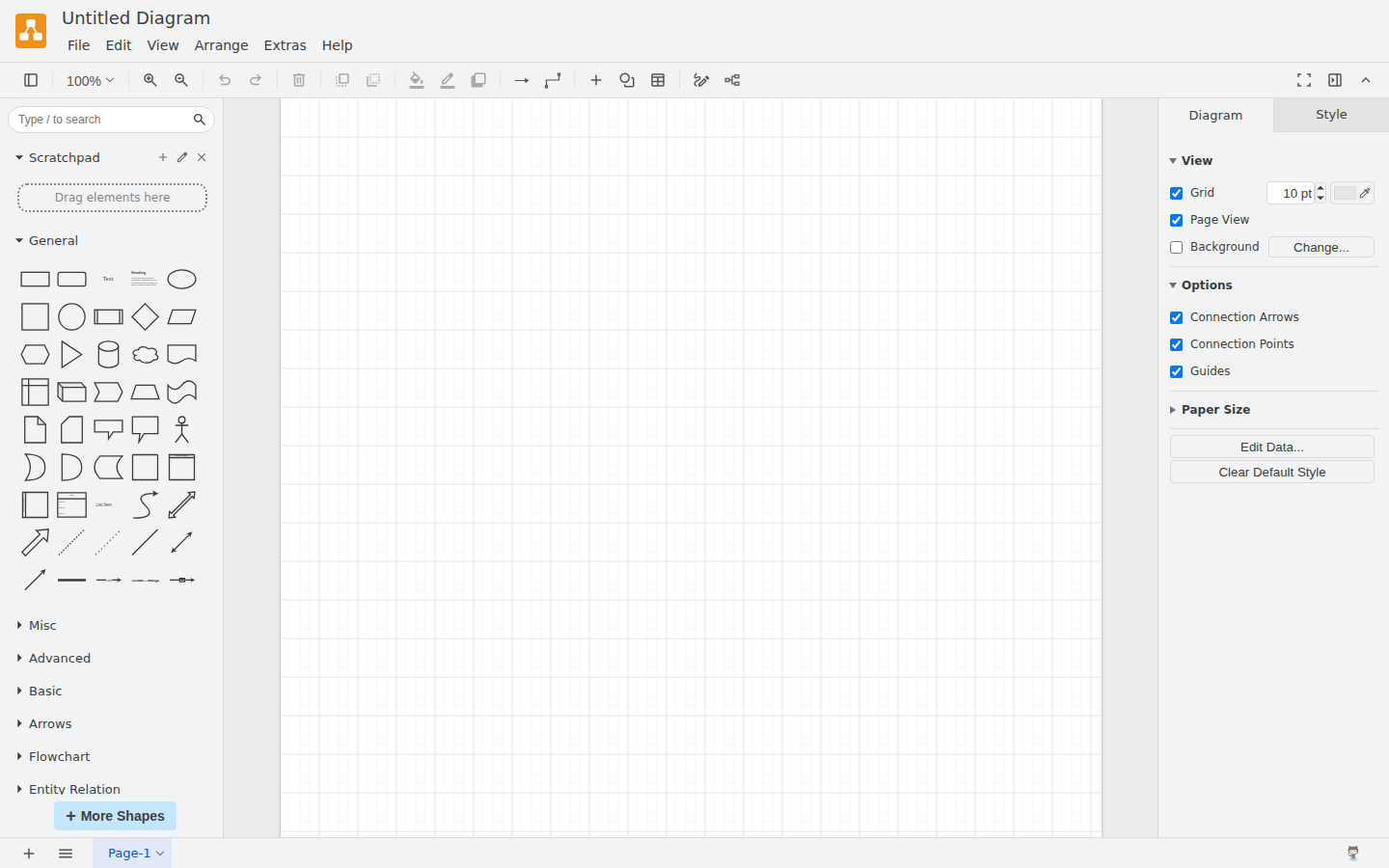

home · draw.io / draw.io 流程图

Application test output

pytest exit=0
.                                                                        [100%]
==================================== PASSES ====================================
=========================== short test summary info ============================
PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets
1 passed in 0.21s
