Verification Report · drawio v31.4.6

NOT PUBLISHED drawio-v31.4.6-20260924-001 verified_at 2026-09-24T06:52:15Z

Immutable inputs

App version	`v31.4.6` ← release tag `v31.4.6` · source `744cb5420fdf`
Image (exact tag)	`jgraph/drawio:31.4.6`
Image digest (linux/amd64)	`sha256:92bac2c9aa7bf129c4d88ef53fc13e85635ba544497264f6fb3ad958a2a18a8a`
Index digest	`sha256:139b43305b77c46575d5af5dcc7b6c38dc7ea22f430fdfe954fb8f96926643e5`
Pulled as	`jgraph/drawio:31.4.6@sha256:92bac2c9aa7bf129c4d88ef53fc13e85635ba544497264f6fb3ad958a2a18a8a` via `registry-1.docker.io`
Platform contract	`ami-0045d7fc2ad003464` · us-east-1/x86_64 · source=public (plat-us-east-1-x86_64-20260924-002)
Config revisions	app `462cab7ac87b` · compose `3ef85b16af7d`
Release type	`new_version` — rule4: minor/major change v31.4.6 -> (31, 4, 6)

Publish gate

Check	Field	Result
Compose started	`checks.compose_started`	Passed
Container healthy	`checks.container_healthy`	Passed
Health check passed	`checks.health_check_passed`	Passed
Application tests	`checks.tests_passed`	Passed
Screenshots captured	`checks.screenshots_generated`	Passed
Screenshots published	`checks.screenshots_uploaded`	Failed
Report published	`checks.report_uploaded`	Failed
Manifest published	`checks.verification_manifest_uploaded`	Failed
Platform contract valid	`checks.required_platform_contract_valid`	Passed

Evidence

Health probe	HTTP 200 — ready
Version assertion	True actual `31.4.6` — 匹配（exact）：kind=exec_command 取到 '31.4.6'，期望 '31.4.6'
Tests	pytest exit=0 . [100%] ==================================== PASSES ==================================== =========================== short test summary info ============================ PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets 1 passed in 0.12s
Container state	`running`
Duration	23.0s（2026-09-24T06:51:52Z → 2026-09-24T06:52:15Z）

Screenshots

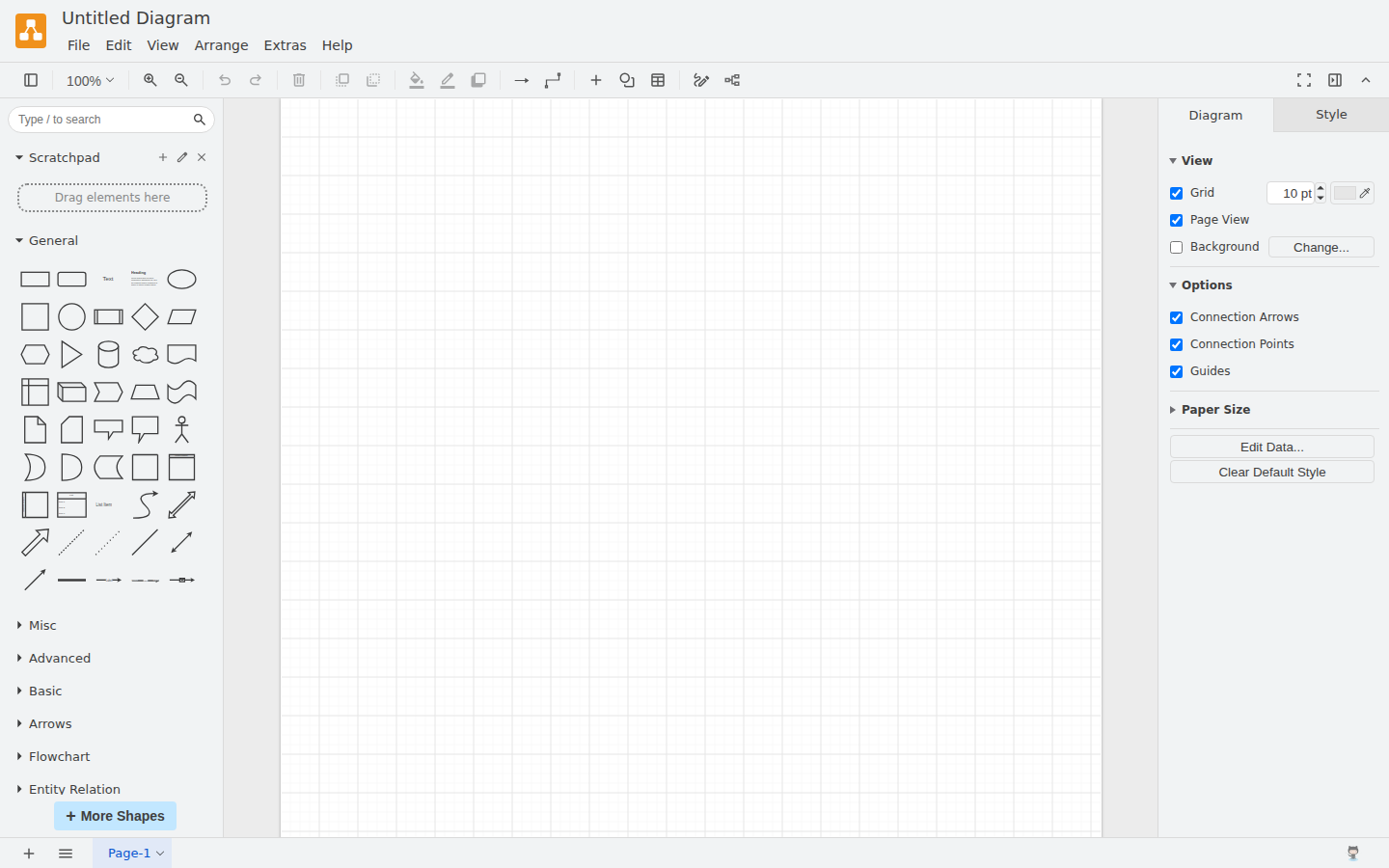

home · draw.io / draw.io 流程图

Application test output

pytest exit=0
.                                                                        [100%]
==================================== PASSES ====================================
=========================== short test summary info ============================
PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets
1 passed in 0.12s
