Verification Report · drawio v32.0.1

NOT PUBLISHED drawio-v32.0.1-20261003-001 verified_at 2026-10-03T20:19:52Z

Immutable inputs

App version	`v32.0.1` ← release tag `v32.0.1` · source `4231dfb383e7`
Image (exact tag)	`jgraph/drawio:32.0.1`
Image digest (linux/amd64)	`sha256:d9ff47b1d3d4ec23110a24c6f303142fc06b0044d71edf0df7c1ec6db275259b`
Index digest	`sha256:a9900b0797a594b1a7096953651c1449352aec0713d0d89fae1ce24fe9ae70f0`
Pulled as	`jgraph/drawio:32.0.1@sha256:d9ff47b1d3d4ec23110a24c6f303142fc06b0044d71edf0df7c1ec6db275259b` via `registry-1.docker.io`
Platform contract	`ami-0045d7fc2ad003464` · us-east-1/x86_64 · source=public (plat-us-east-1-x86_64-20261001-001)
Config revisions	app `462cab7ac87b` · compose `3ef85b16af7d`
Release type	`new_version` — rule4: minor/major change v31.6.1 -> (32, 0, 1)

Publish gate

Check	Field	Result
Compose started	`checks.compose_started`	Passed
Container healthy	`checks.container_healthy`	Passed
Health check passed	`checks.health_check_passed`	Passed
Application tests	`checks.tests_passed`	Passed
Screenshots captured	`checks.screenshots_generated`	Passed
Screenshots published	`checks.screenshots_uploaded`	Failed
Report published	`checks.report_uploaded`	Failed
Manifest published	`checks.verification_manifest_uploaded`	Failed
Platform contract valid	`checks.required_platform_contract_valid`	Passed

Evidence

Health probe	HTTP 200 — ready
Version assertion	True actual `32.0.1` — 匹配（exact）：kind=exec_command 取到 '32.0.1'，期望 '32.0.1'
Tests	pytest exit=0 . [100%] ==================================== PASSES ==================================== =========================== short test summary info ============================ PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets 1 passed in 0.14s
Container state	`running`
Duration	22.4s（2026-10-03T20:19:30Z → 2026-10-03T20:19:52Z）

Screenshots

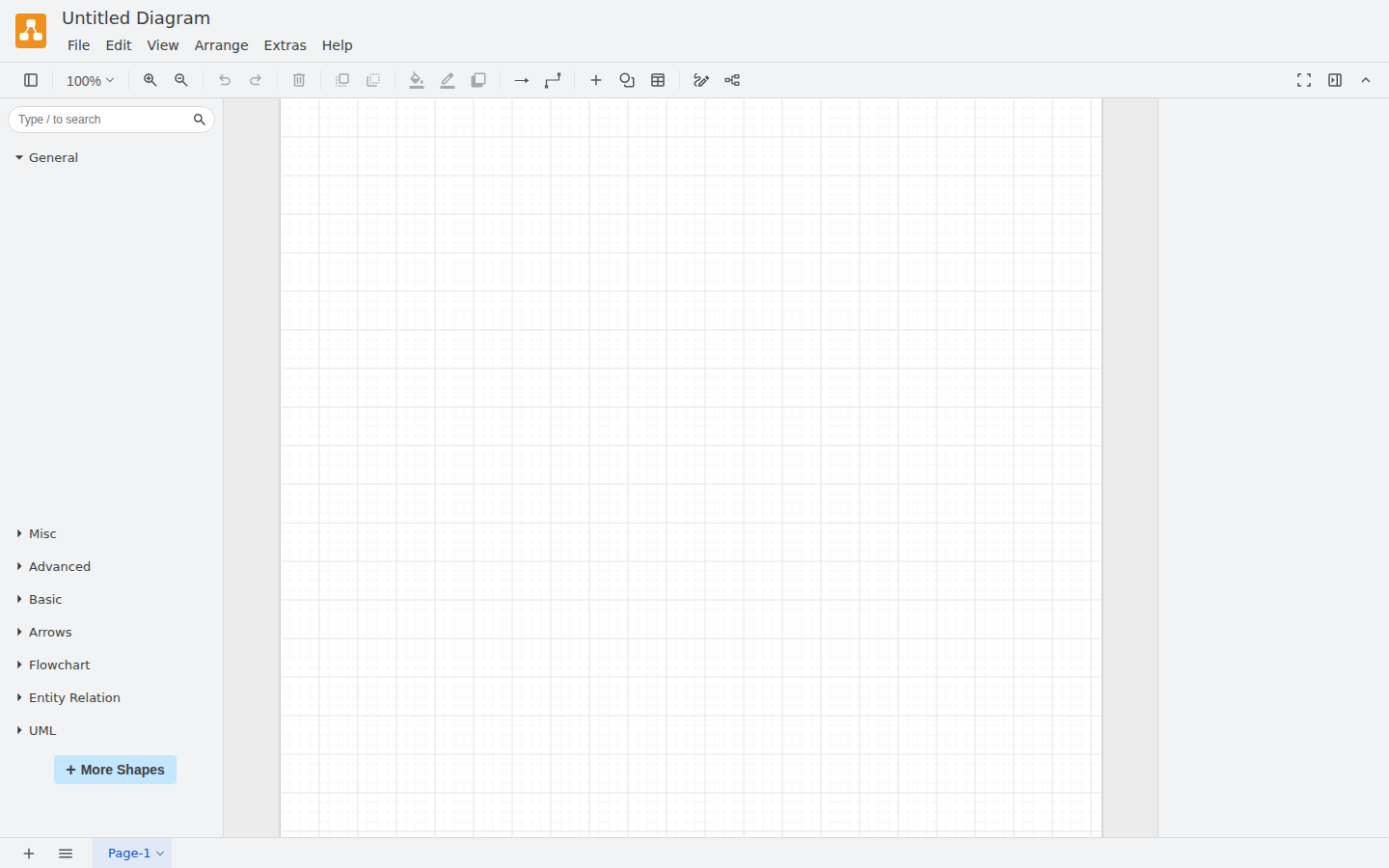

home · draw.io / draw.io 流程图

Application test output

pytest exit=0
.                                                                        [100%]
==================================== PASSES ====================================
=========================== short test summary info ============================
PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets
1 passed in 0.14s
