Verification Report · drawio v32.0.2

NOT PUBLISHED drawio-v32.0.2-20261004-001 verified_at 2026-10-04T03:11:12Z

Immutable inputs

App version	`v32.0.2` ← release tag `v32.0.2` · source `2201e54124bf`
Image (exact tag)	`jgraph/drawio:32.0.2`
Image digest (linux/amd64)	`sha256:29fd8167c35da7d887167269aaa79bab5db2252936eb2bb48f1cb281fdefb9a7`
Index digest	`sha256:185d36c8c0992f7c9f063d71c7ef93549f3e4c65483ac86b4b17093818fe87aa`
Pulled as	`jgraph/drawio:32.0.2@sha256:29fd8167c35da7d887167269aaa79bab5db2252936eb2bb48f1cb281fdefb9a7` via `registry-1.docker.io`
Platform contract	`ami-0045d7fc2ad003464` · us-east-1/x86_64 · source=public (plat-us-east-1-x86_64-20261001-001)
Config revisions	app `462cab7ac87b` · compose `3ef85b16af7d`
Release type	`bug_fix` — rule3: patch-only bump v32.0.1 -> (32, 0, 2)

Publish gate

Check	Field	Result
Compose started	`checks.compose_started`	Passed
Container healthy	`checks.container_healthy`	Passed
Health check passed	`checks.health_check_passed`	Passed
Application tests	`checks.tests_passed`	Passed
Screenshots captured	`checks.screenshots_generated`	Passed
Screenshots published	`checks.screenshots_uploaded`	Failed
Report published	`checks.report_uploaded`	Failed
Manifest published	`checks.verification_manifest_uploaded`	Failed
Platform contract valid	`checks.required_platform_contract_valid`	Passed

Evidence

Health probe	HTTP 200 — ready
Version assertion	True actual `32.0.2` — 匹配（exact）：kind=exec_command 取到 '32.0.2'，期望 '32.0.2'
Tests	pytest exit=0 . [100%] ==================================== PASSES ==================================== =========================== short test summary info ============================ PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets 1 passed in 0.25s
Container state	`running`
Duration	27.5s（2026-10-04T03:10:45Z → 2026-10-04T03:11:12Z）

Screenshots

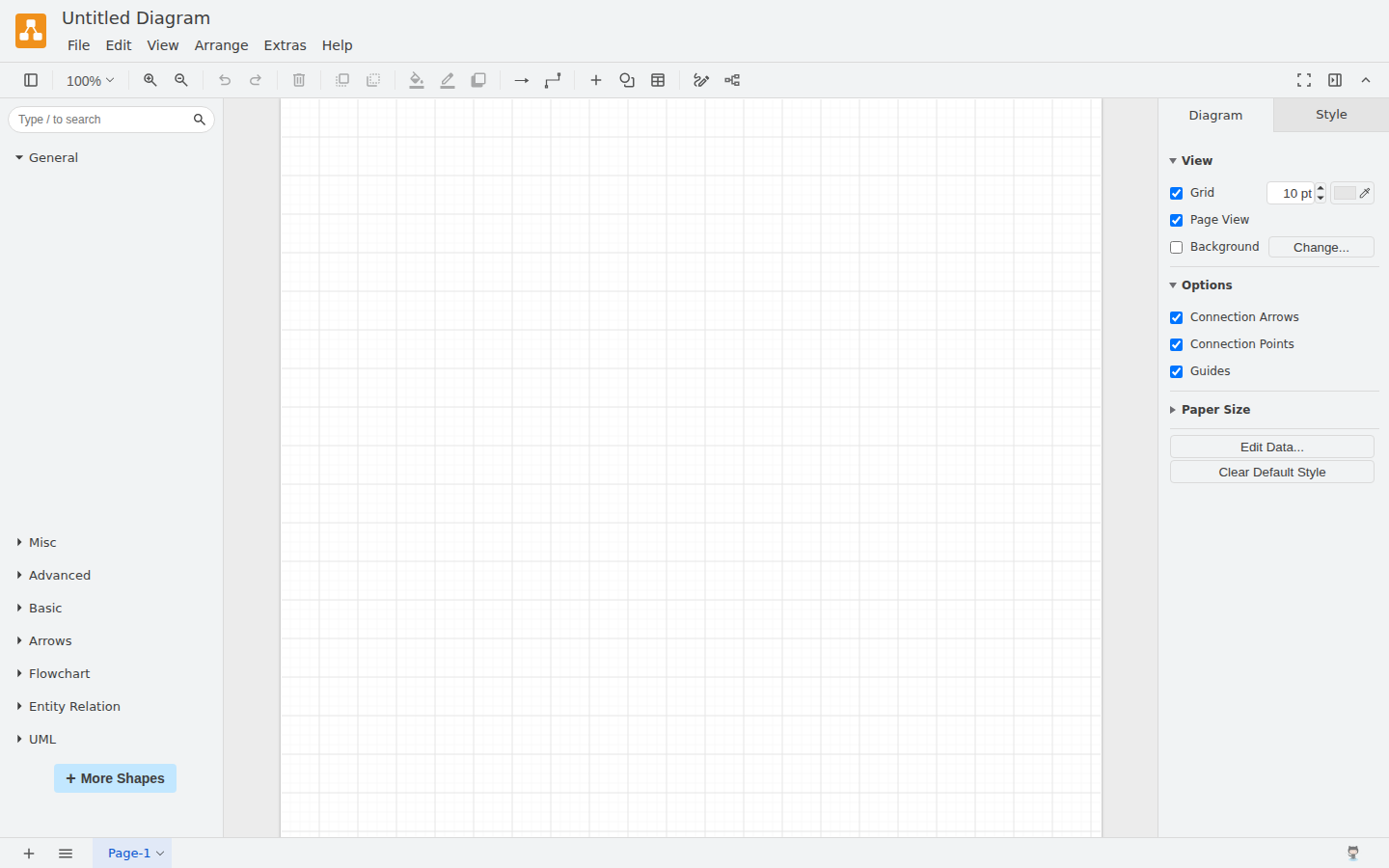

home · draw.io / draw.io 流程图

Application test output

pytest exit=0
.                                                                        [100%]
==================================== PASSES ====================================
=========================== short test summary info ============================
PASSED apps/drawio/tests/test_smoke.py::test_app_and_required_assets
1 passed in 0.25s
